Project: Stakarts® Tetrazone — Innovative Public Fire Extinguisher Concept
Scope: Product Design, Ergonomics, Cartridge Mechanism & 3D Visualization
Thank you.
Innovative Fire Extinguisher
Designed by stakarts®
Motivation
IMMIB 2023 Industrial Design Competition Specifications
The project involves designing a variety of products and equipment for professionals, institutions, and disaster victims. This includes life support modules/systems for immediate deployment post-natural disasters, addressing basic human needs for sustenance, shelter, protection, sanitation, and hygiene. The focus extends to diverse products such as those for nutrition, shelter, protection, sanitation, and rescue, covering the needs of children and pets as well.
The competition theme centers on the critical hours following disasters, emphasizing the importance of rapid response for survivors. It covers products for use before, during, and after disasters, addressing the need for protection, shelter, and basic human necessities in the aftermath of disrupted infrastructure and services.

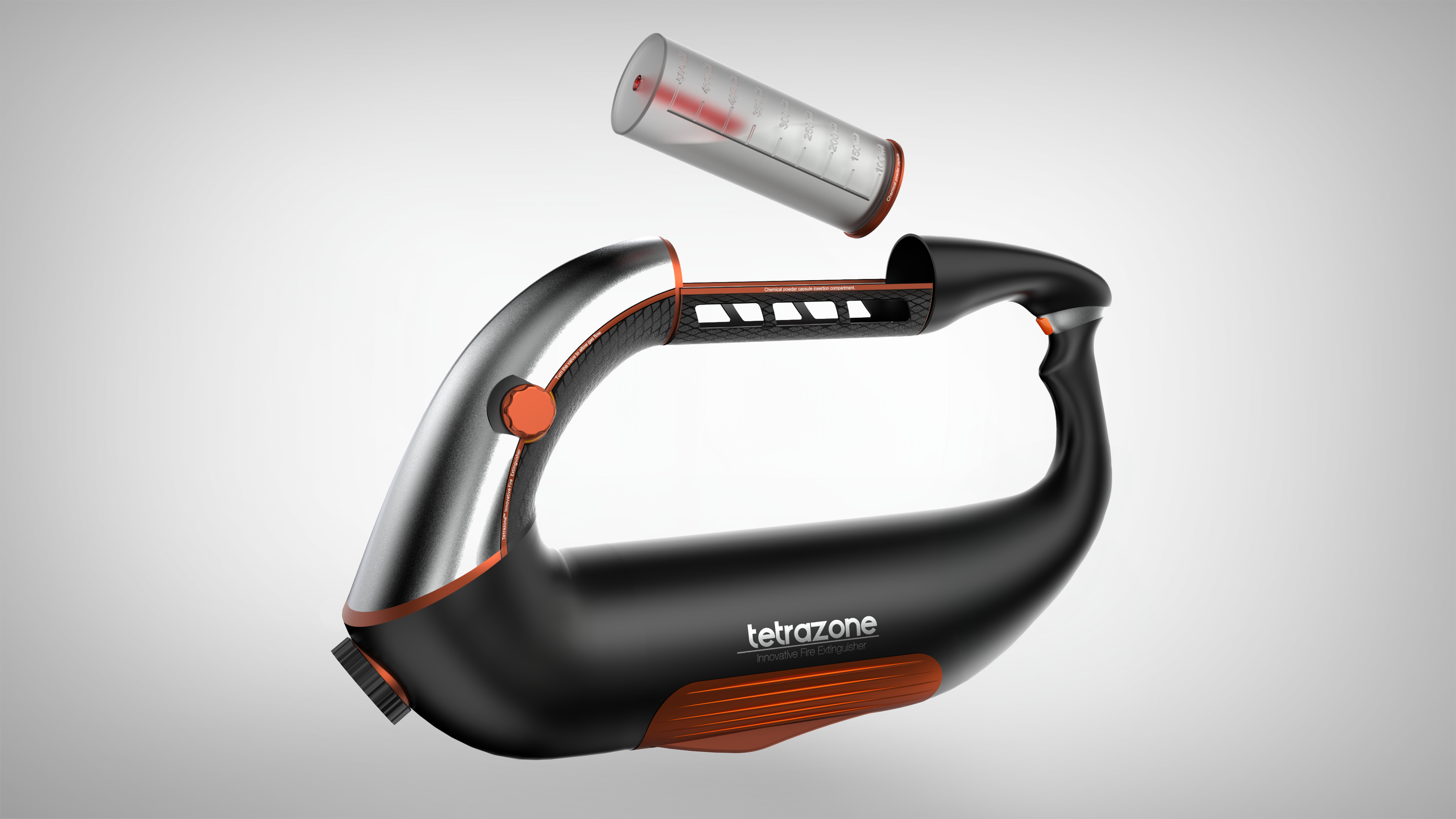

The chemical powder compartment is secured to the magazine section via pins.
The 500 ml capacity chemical powder compartment is held in place with 3 pins.
Tetrazone innovative fire extinguisher case. It has a capacity for three 500 ml chemical powder cartridges. The cartridges are placed into the Tetrazone fire extinguisher loader.

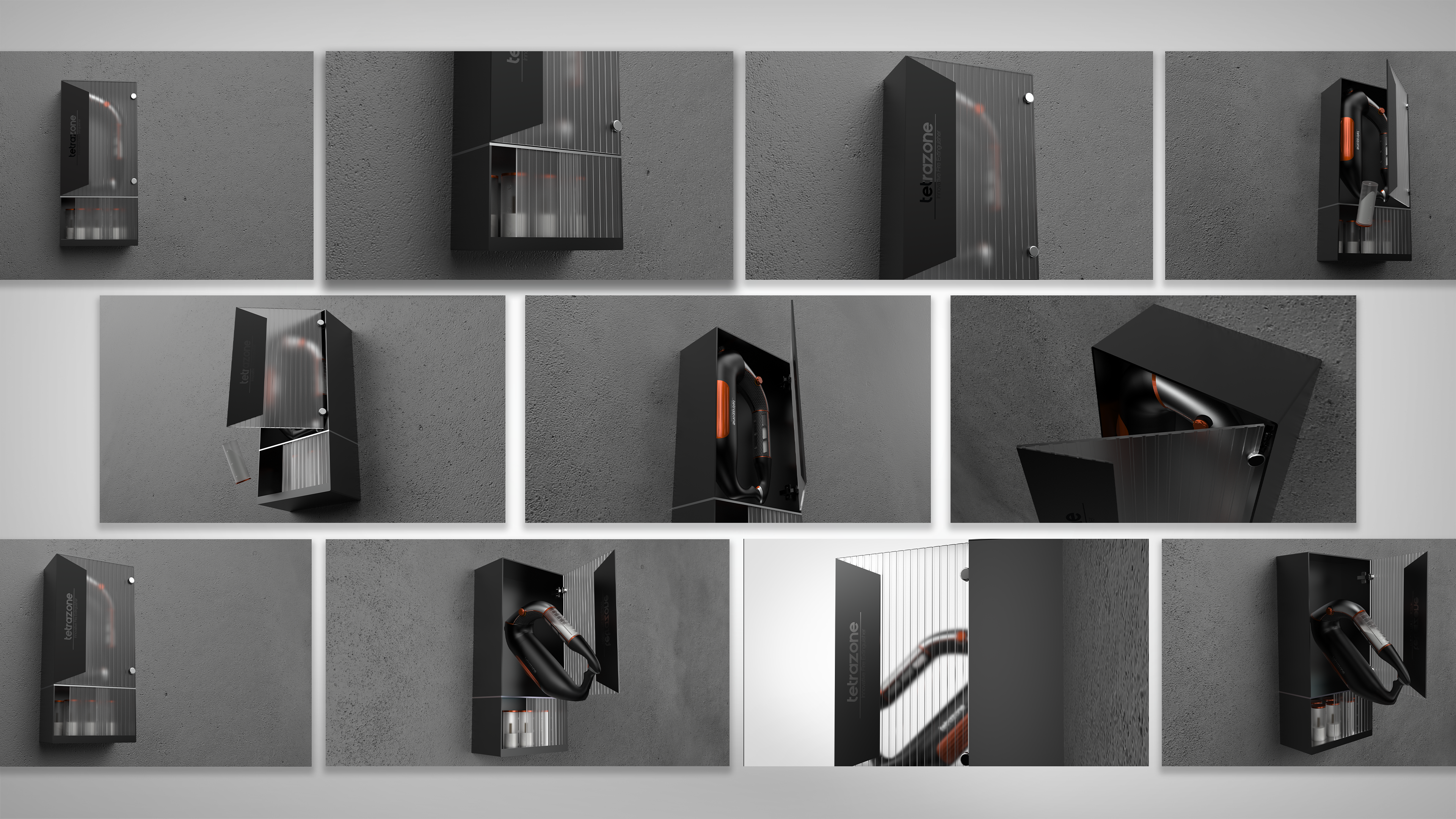

Tetrazone fire extinguisher and chemical powder container cabinet.

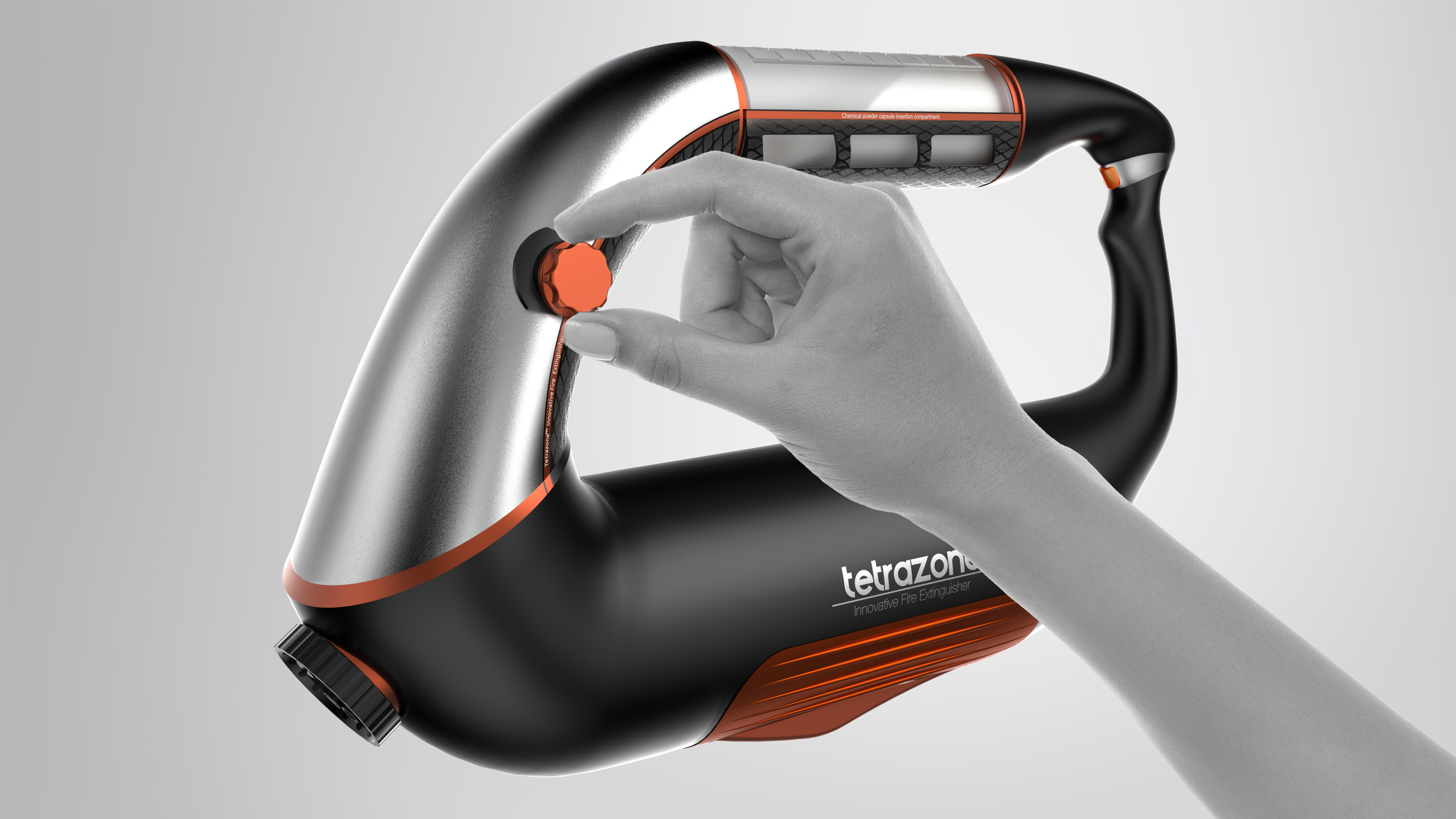

Gas flow is provided by turning the solenoid valve.

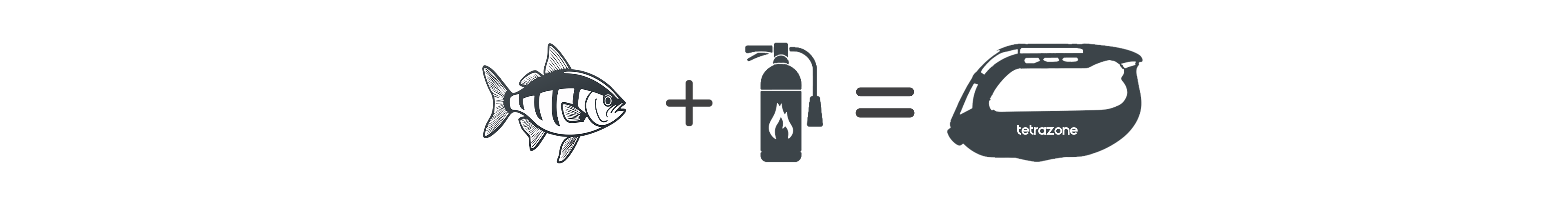

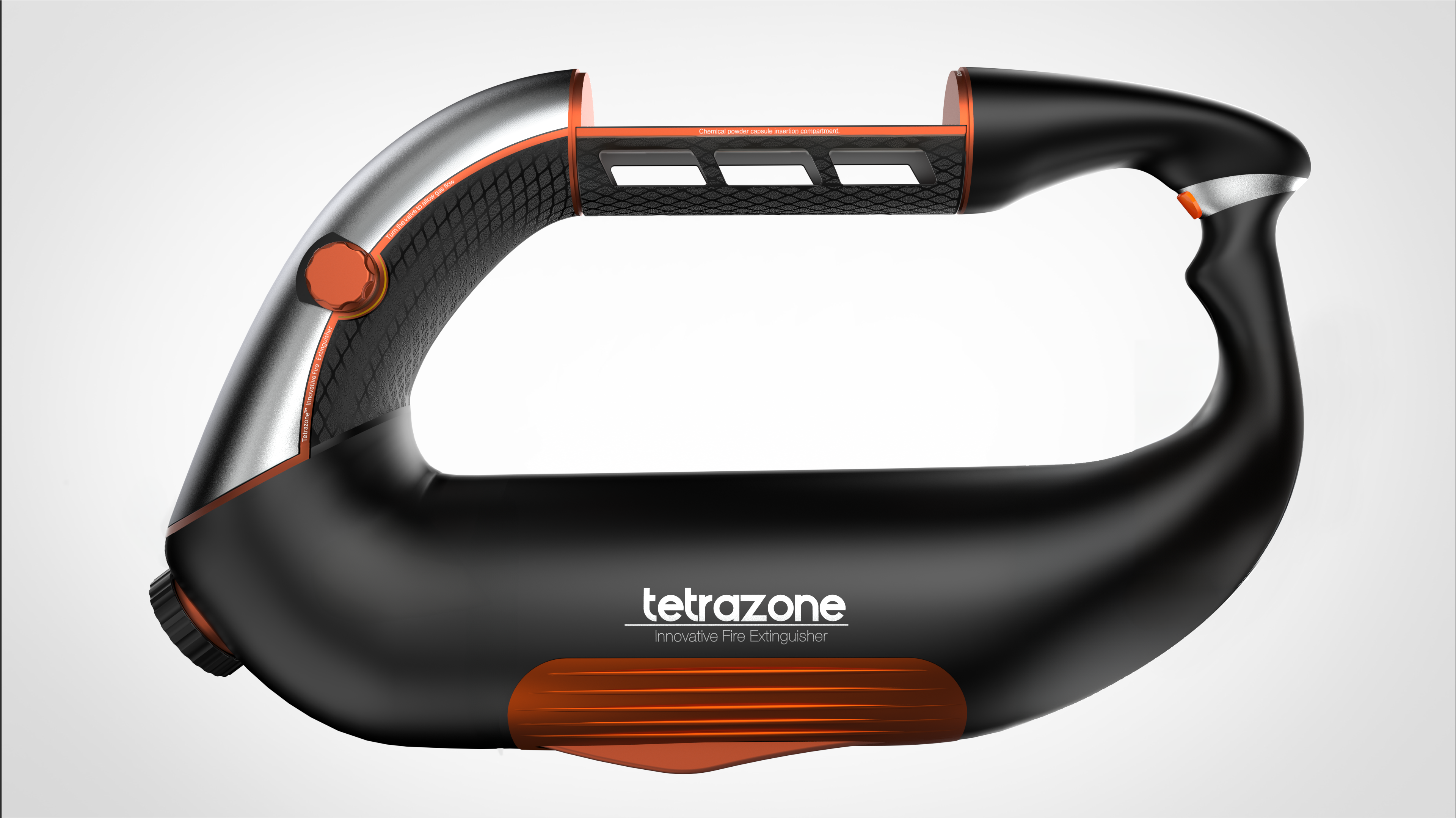

The Tetrazone fire extinguisher, with its ergonomic grip and replaceable powder reservoir, ensures efficient fire fighting. Its design draws inspiration from the aggressive Tropical Tetrazone fish.
Explore Tetrazone in 360°
Interactive 3D Model • Designed by stakarts®
Drag to rotate 360° • Scroll to zoom • Right-click to pan
